FruityMesh Algorithm

A mesh should be able to build and manage all connections without user interaction. There is one big restriction when it comes to BLE connections. Having more than one connection as a Peripheral can degrade mesh performance and lead to connection losses. Using one connection as a Peripheral and up to three connections as a Central has proven a good configuration for mesh connections. With these settings, the following will lead to problems where two nodes cannot connect to each other because their one connection as a Peripheral is already taken.

There is no way to know the size - or the participating nodes - of our mesh in advance. Distributing the presence of a node over long distances would be a bad idea because of the time it takes and the energy it costs. This means that every node can only see its surroundig nodes.

There is a Simulator available that will show you how the algorithm works. It allows you to play around with different configurations and see how the mesh reacts.

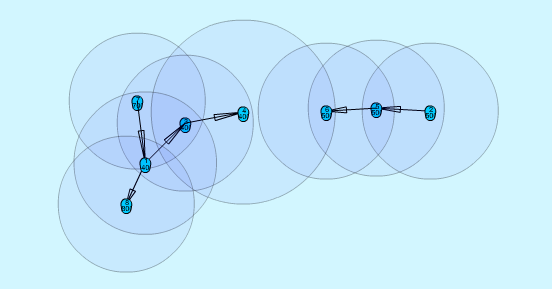

Each node saves a few variables like network id, cluster id, cluster size and its own id. Additionally it keeps some information for each of its connections. During discovery, it broadcasts its nodeId, clusterSize and clusterId along with a few other measures in special advertising packets (JOIN_ME packets). It will also scan for some time to receive discovery packets of surrounding nodes. From these packets, it selects the best connection partner and connects to him.

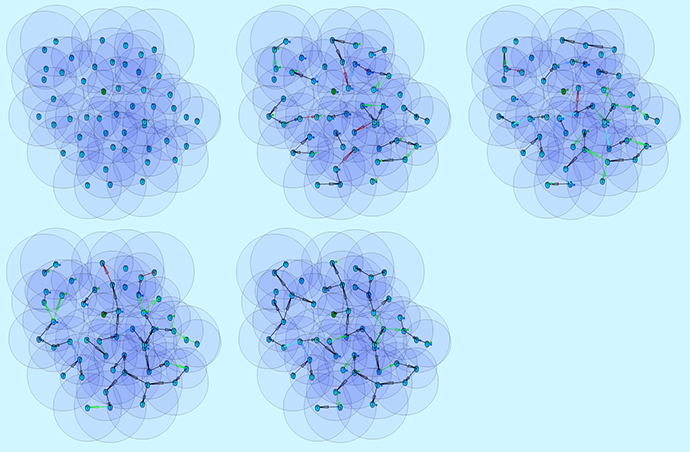

Now, the real trick here is the clustering. Because every node knows the size of the cluster that it’s part of, it uses this as a criteria when connecting to others. Big clusters can always decide to which nodes they want to connect and smaller clusters will have to obey. Any change in cluster size due to connection or disconnection is broadcasted through the exisiting connections. After a few JOIN_ME packets have been collected, these are processed in the ClusterScore function to determine the best connection partner. A node will never try to connect to a node with the same clusterId which does effectively prevent loops.

After receiving the JOIN_ME packets, some time has passed and the other node might already be in another cluster or in a different state than before. This is why the two nodes will first do a handshake after connecting where they pass each other the latest information. Only one Handshake must happen at a time to prevent race conditions. Once they are satisfied with their partner, the connection can be used, otherwise it will be disconnected.

The algorithm uses a state machine that switches between different DISCOVERY and HANDSHAKE states. This helps the node to reduce its energy usage.

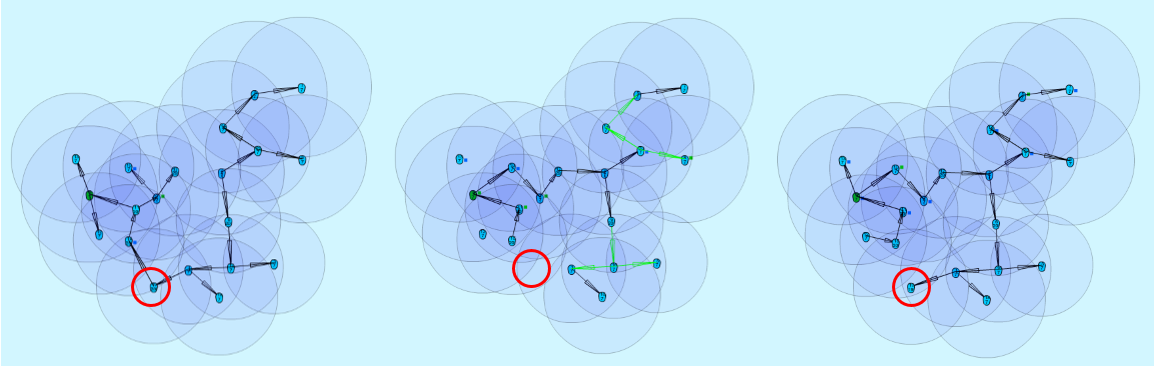

Once a connection in the cluster breaks up, the smaller cluster distributes a new cluster id among its nodes. This will ultimately repair the missing connection through a similar way.

After each connection loss, a node will increment its connection-loss-counter. This counter is used together with the nodeId to generate a clusterID, this is necessary because there might be cases where the founding node of a cluster can not join the cluster anymore if it generates the same clusterID again.

Master Bit Because a node cannot know for certain at any time if it is part of the bigger cluster, there might be times where two connected nodes both think they are part of the bigger cluster, which would pose a threat to our mesh once the connection drops. Therefore, each connection is assigned a masterBit that is passed to the node that is part of the bigger cluster. Now, it is only possible that the masterBit is in transition during a disconnect and both cluster must dissolve, but they cannot form islands anymore.

Anybody interested in a much more detailed explanation of the Algorithm is welcome to take a look at The Algorithm in Detail page.
